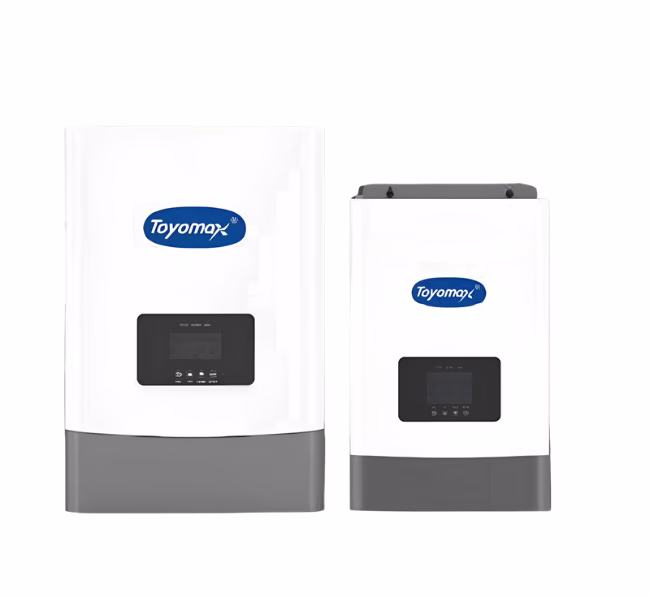

TY Series Off-Grid & Hybrid Solar Inverter

TY Series Off-Grid & Hybrid Solar Inverter

High-Capacity Pure Sine Wave Solar Inverter with Parallel Stacking & Segmented Energy Management

The Toyomax TY Series (6.2kW – 12kW) is a heavy-duty 48V hybrid inverter engineered to deliver reliable, uninterrupted power for residential homes, commercial hubs, and off-grid facilities. Featuring pure sine wave output, advanced segmented charging/discharging controls, and a high-surge motor starting capability (up to 7HP), the TY Series operates as a flexible power hub capable of blending solar, utility grid, and generator power seamlessly.

With built-in anti-backflow controls, energy-saving idle modes, and support for up to 6 units in parallel, it offers scale for growing enterprise power needs.

Key Features & Highlights

  • High Surge Motor Driving Capacity: Engineered to handle heavy inductive loads, starting up to 4HP (TY-6.2K) or 7HP (TY-12K) motor loads effortlessly.
  • Segmented Charge/Discharge Management: Programmable time-slot controls for grid charging and battery discharge to optimize utility time-of-use rates.
  • Flexible Dual Output Modes: Supports dual operational modes—mains bypass and inverter output—for uninterrupted power supply (UPS) performance (<10ms transition).
  • Anti-Backflow Grid Connection: Integrated anti-backflow function prevents unwanted power export to the utility grid while enabling PV power-sharing.
  • Energy-Saving Low Idle Mode: Reduces no-load losses with built-in power-saving modes (self-consumption as low as ≤25W for 6.2kW model).
  • Parallel System Expansion: Supports up to 6 units connected in parallel to scale overall system power up to 72kW.
  • Smart Remote Telemetry: Integrated USB, RS485, and dry contact ports with optional Wi-Fi/GPRS modules for mobile app and computer monitoring.
